Omnipolar High-Voltage Tolerant Hall Switch

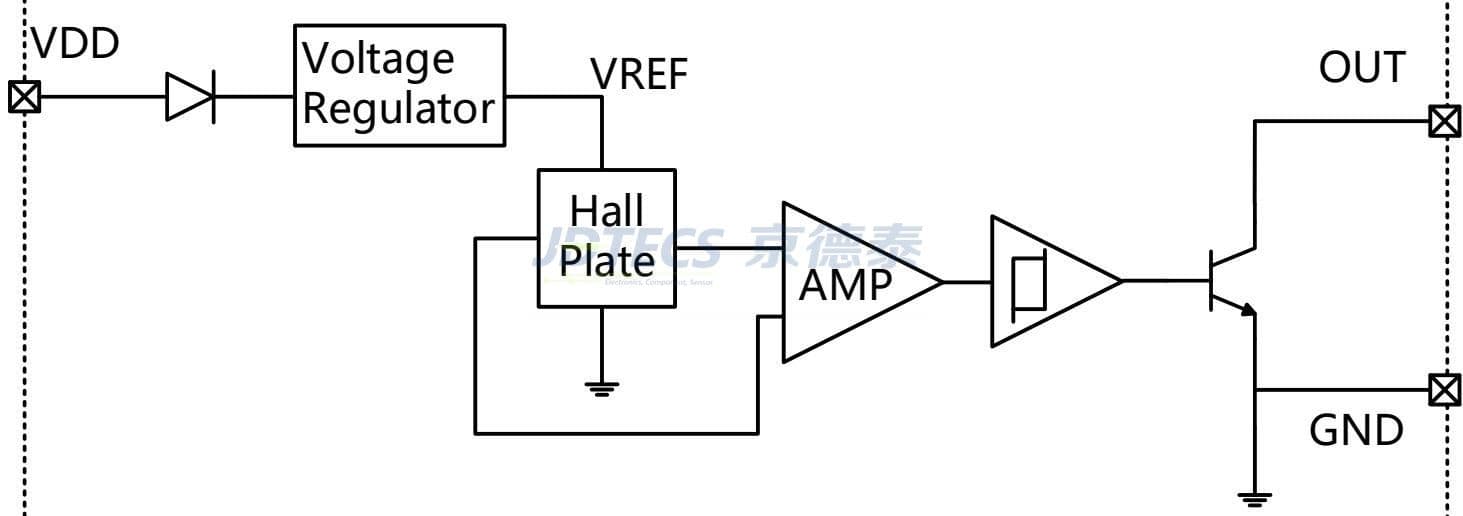

The SL2464 is a high-sensitivity, omnipolar Hall switch chip designed with bipolar semiconductor technology. It integrates a voltage regulator, Hall voltage generator, differential amplifier, temperature compensation circuit, and open-collector output. It converts magnetic flux density input into a digital voltage signal output. Available in RoHS-compliant TO92S through-hole and SOT23-3L surface-mount packages, it features excellent high-voltage tolerance and a wide operating temperature range.
Download PDF DatasheetProduct Features

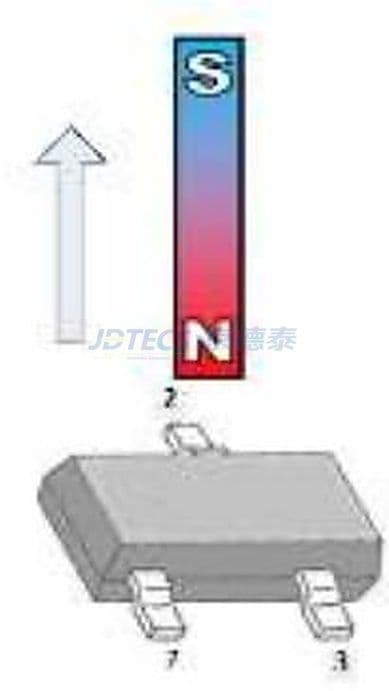

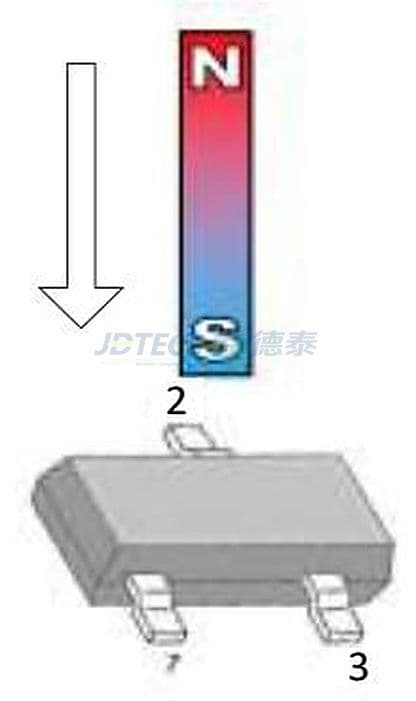

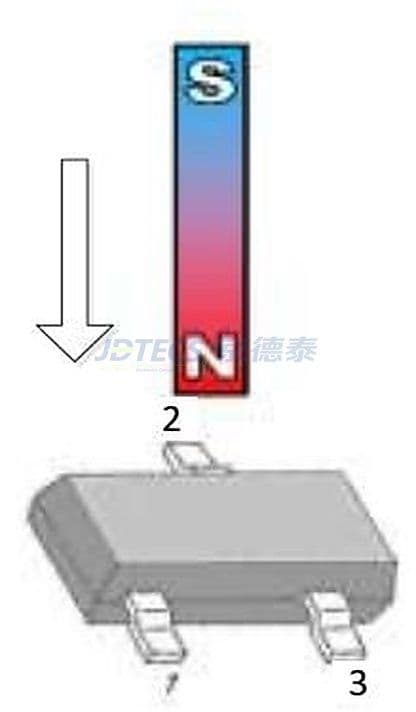

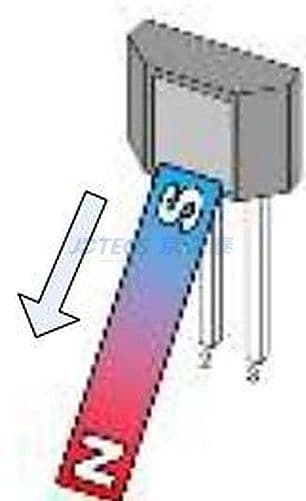

- ◆ Omnipolar Magnetic Sensing (Responds to both North and South poles)
- ◆ Wide Operating Voltage Range (3.5V to 40V)
- ◆ High Sensitivity (Typ. Bop ±50Gs, Brp ±30Gs)

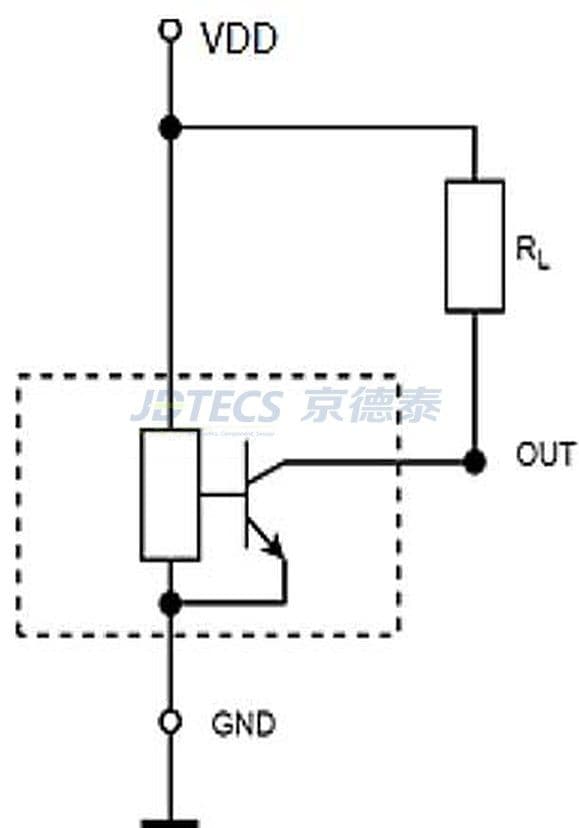

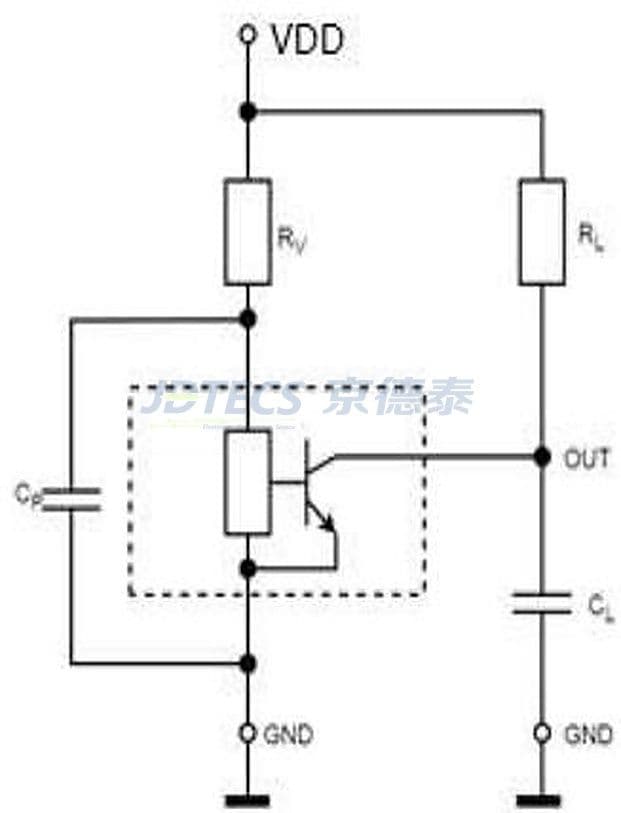

- ◆ Open-Collector Output for Easy Interfacing
- ◆ Excellent ESD Protection (HBM ±5kV)
- ◆ Wide Operating Temperature Range (-40°C to 125°C)

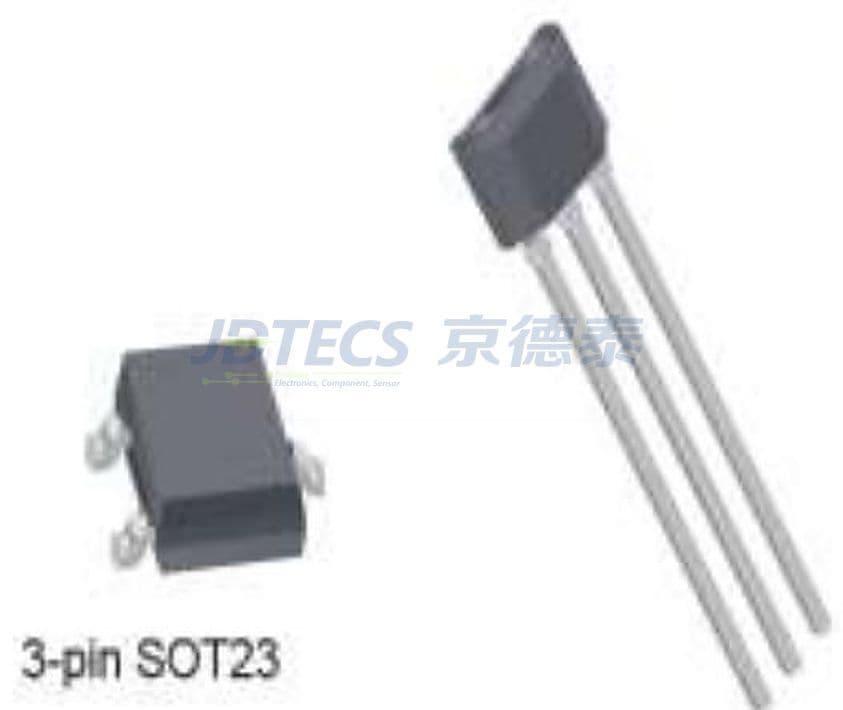

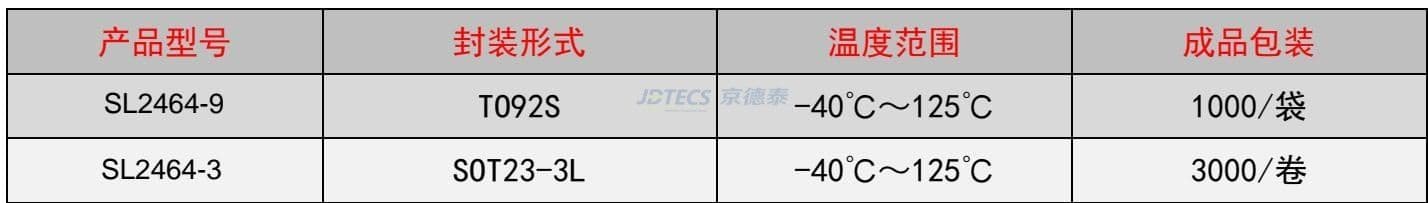

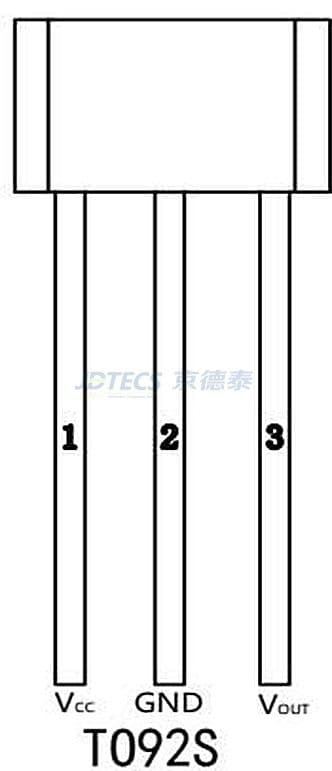

- ◆ Available in Miniature TO92S and SOT23-3L Packages

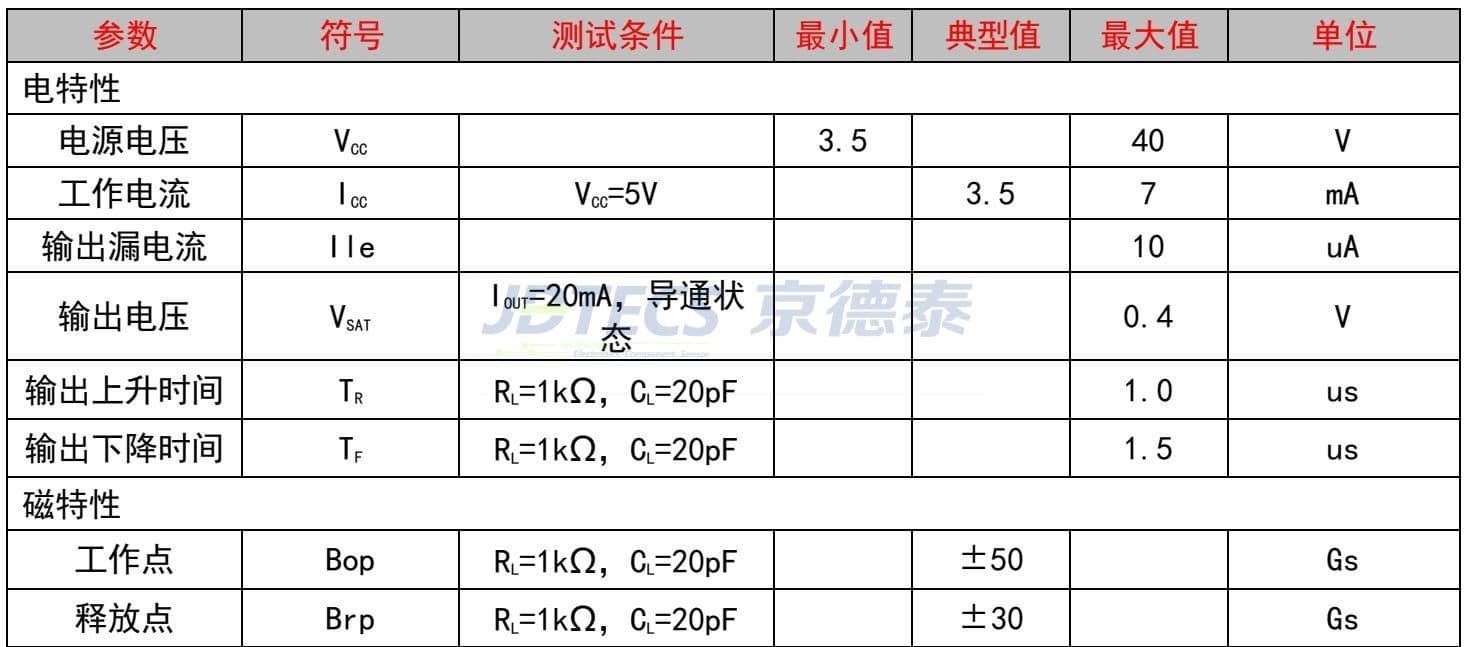

Technical Specification
| Parameter | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Electrical Characteristics | |||||
| Supply Voltage Vcc | - | 3.5 | - | 40 | V |
| Supply Current Icc | Vcc=5V | - | 3.5 | 7 | mA |
| Output Saturation Voltage VSAT | IOUT=20mA, On | - | - | 0.4 | V |
| Output Rise Time Tr | RL=1kΩ, CL=20pF | - | - | 1.0 | µs |
| Output Fall Time Tf | RL=1kΩ, CL=20pF | - | - | 1.5 | µs |
| Magnetic Characteristics | |||||

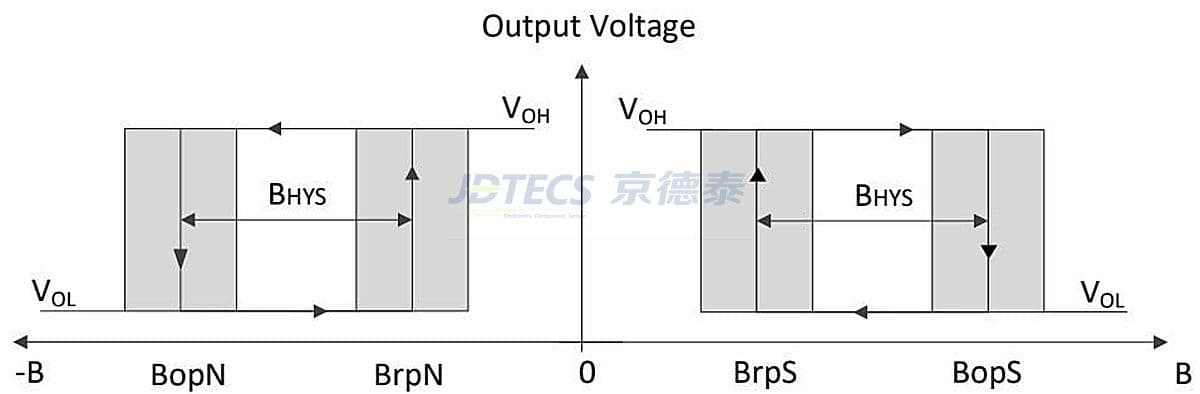

| Operate Point Bop | RL=1kΩ, CL=20pF | - | ±50 | - | Gs |
| Release Point Brp | RL=1kΩ, CL=20pF | - | ±30 | - | Gs |
| Magnetic Hysteresis B_HYS | RL=1kΩ, CL=20pF | - | 20 | - | Gs |

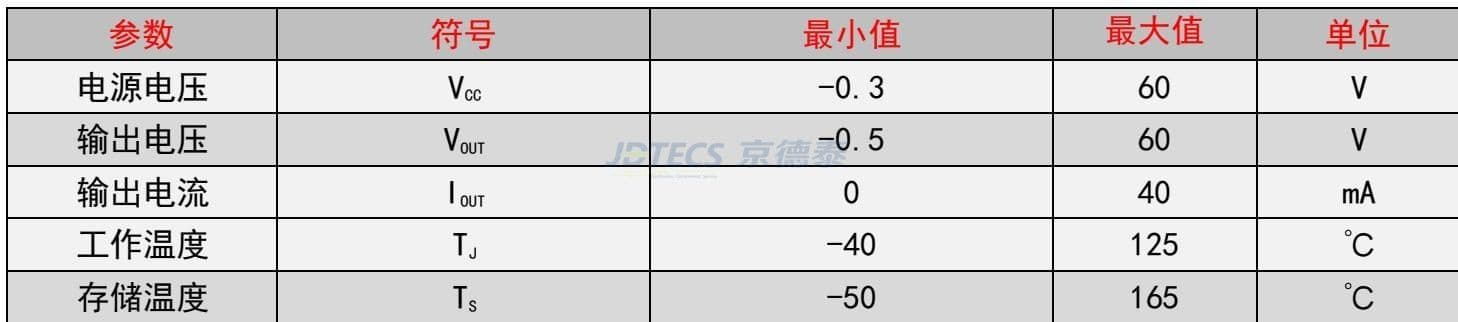

| Absolute Maximum Ratings | |||||
| Maximum Supply Voltage | - | - | - | 60 | V |
| Maximum Output Current | - | - | - | 40 | mA |
| Operating Junction Temperature | - | -40 | - | 125 | °C |

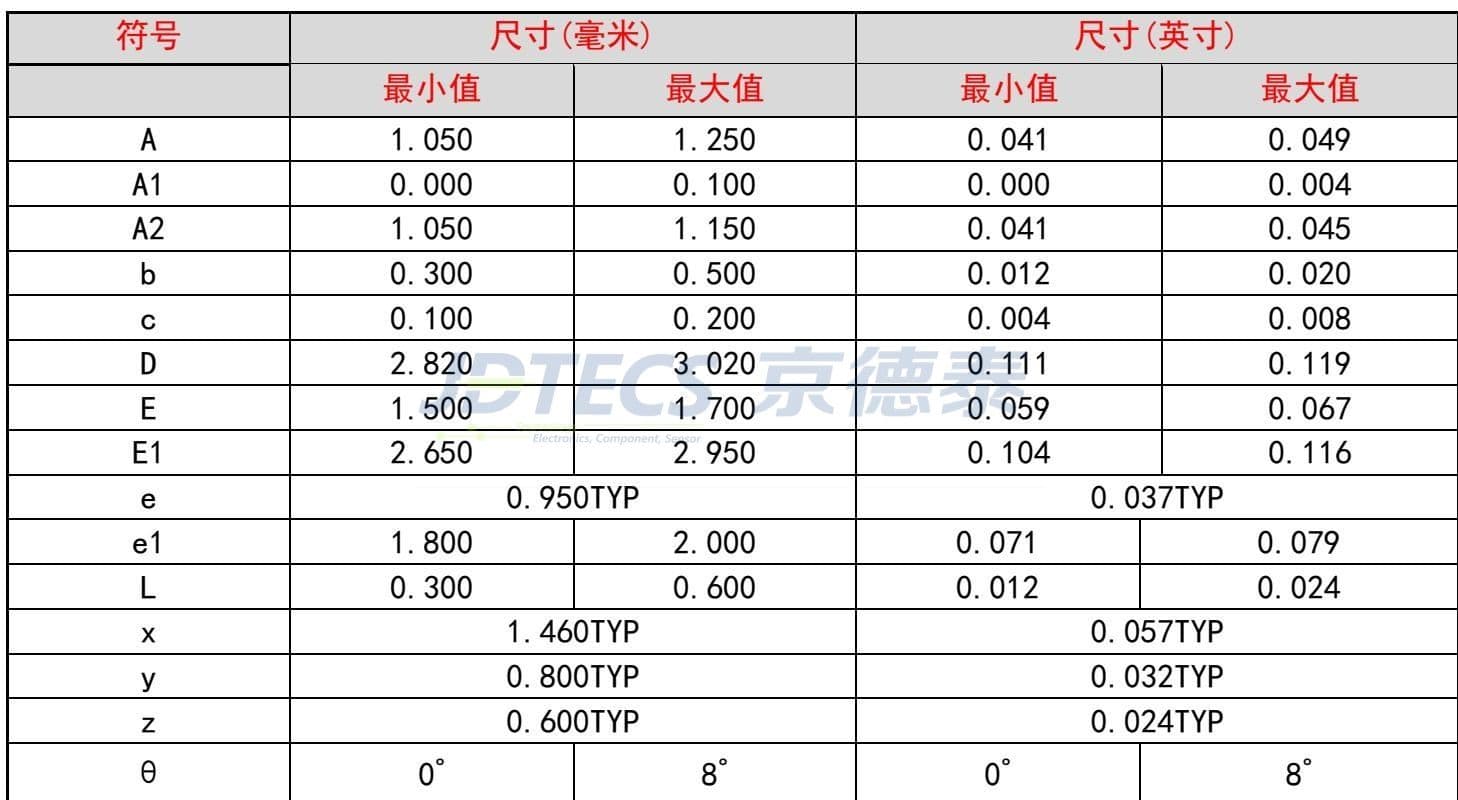

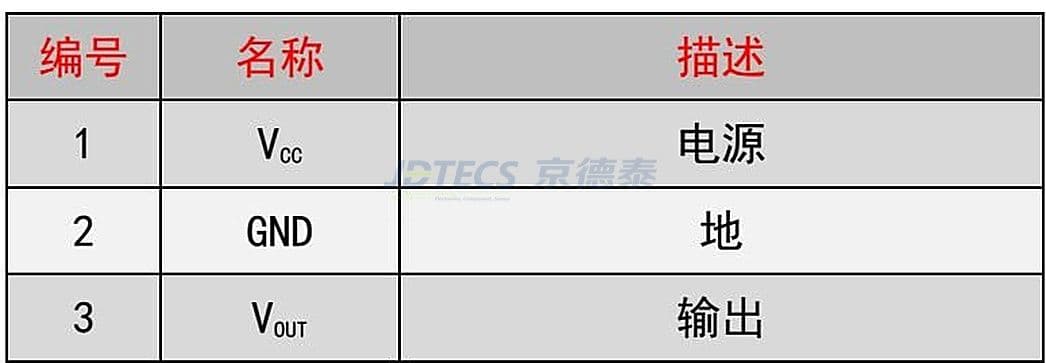

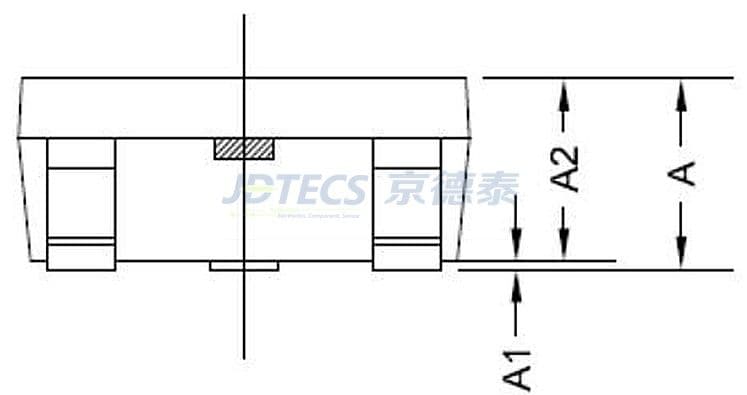

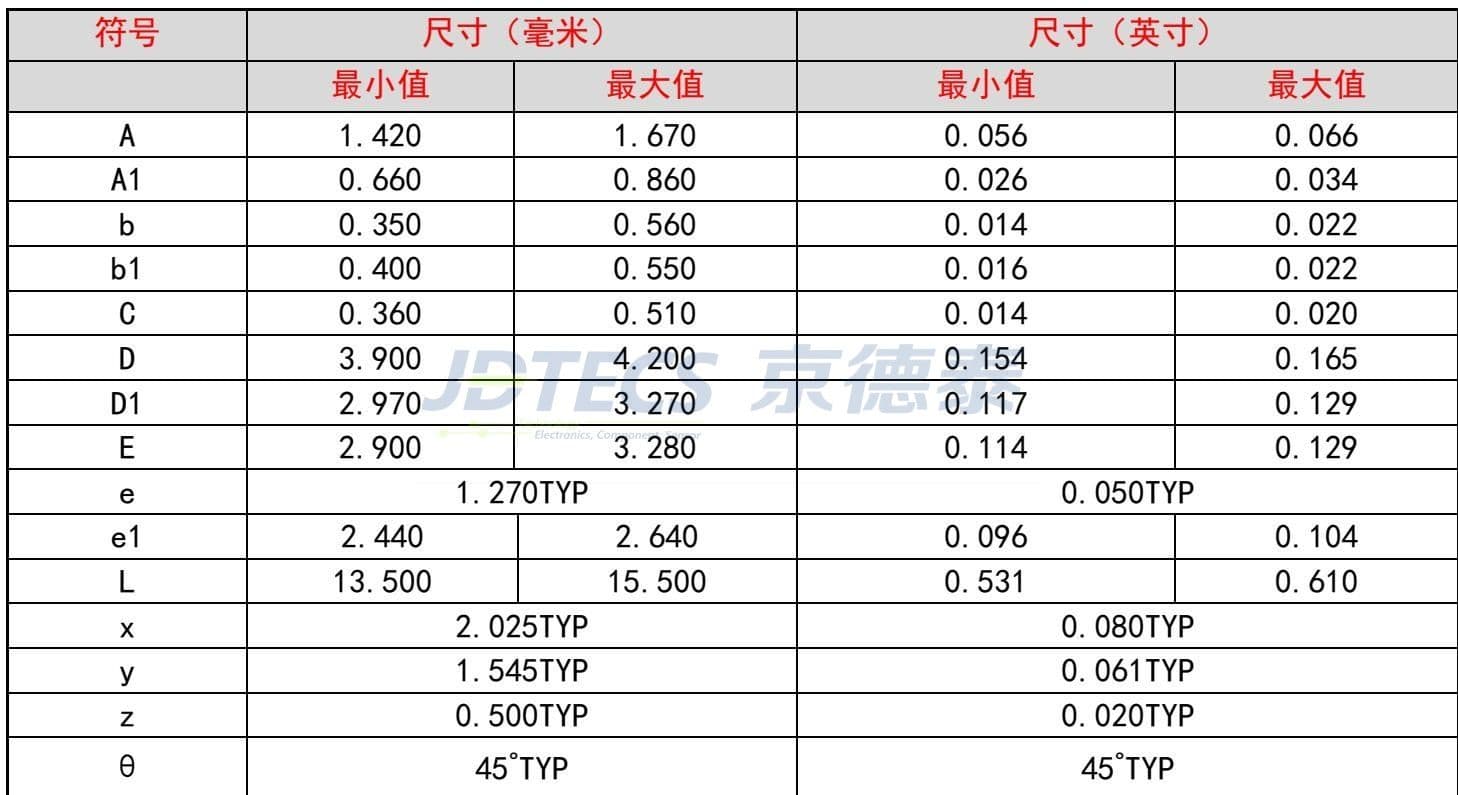

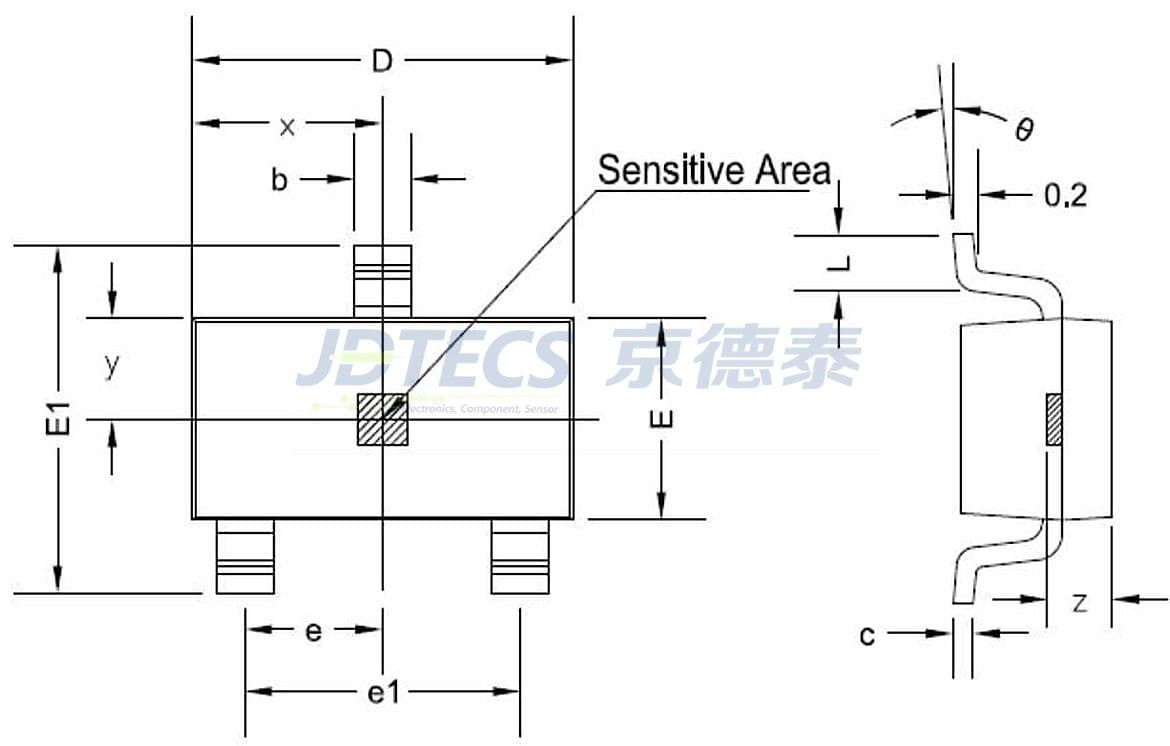

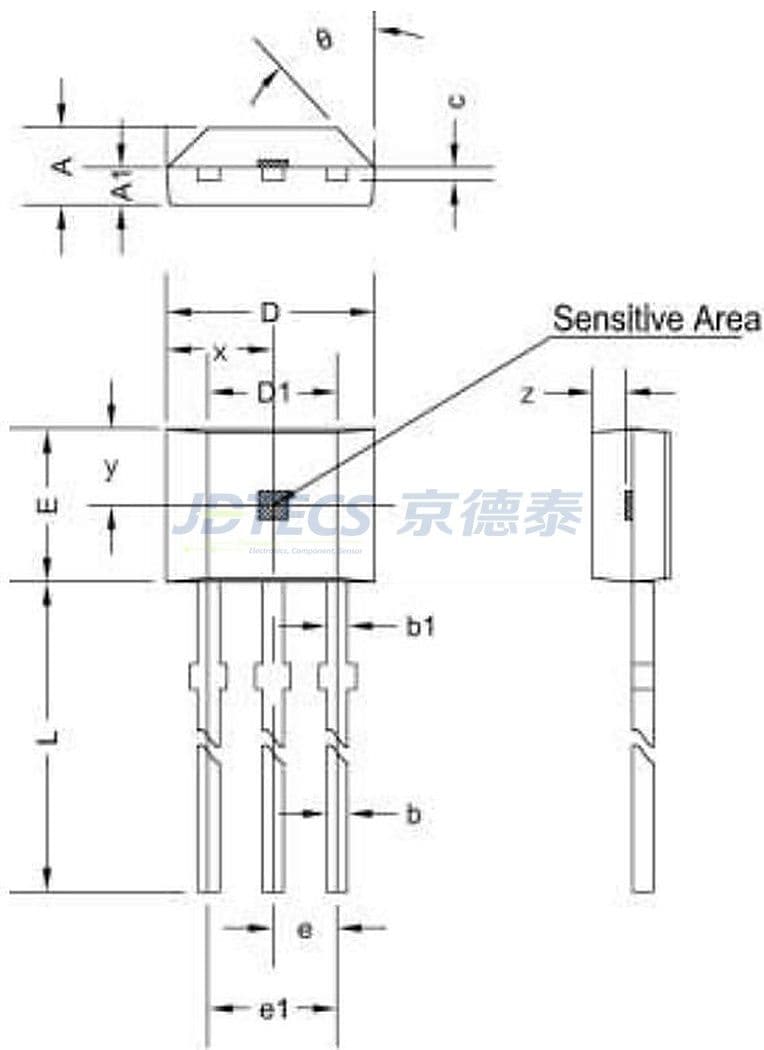

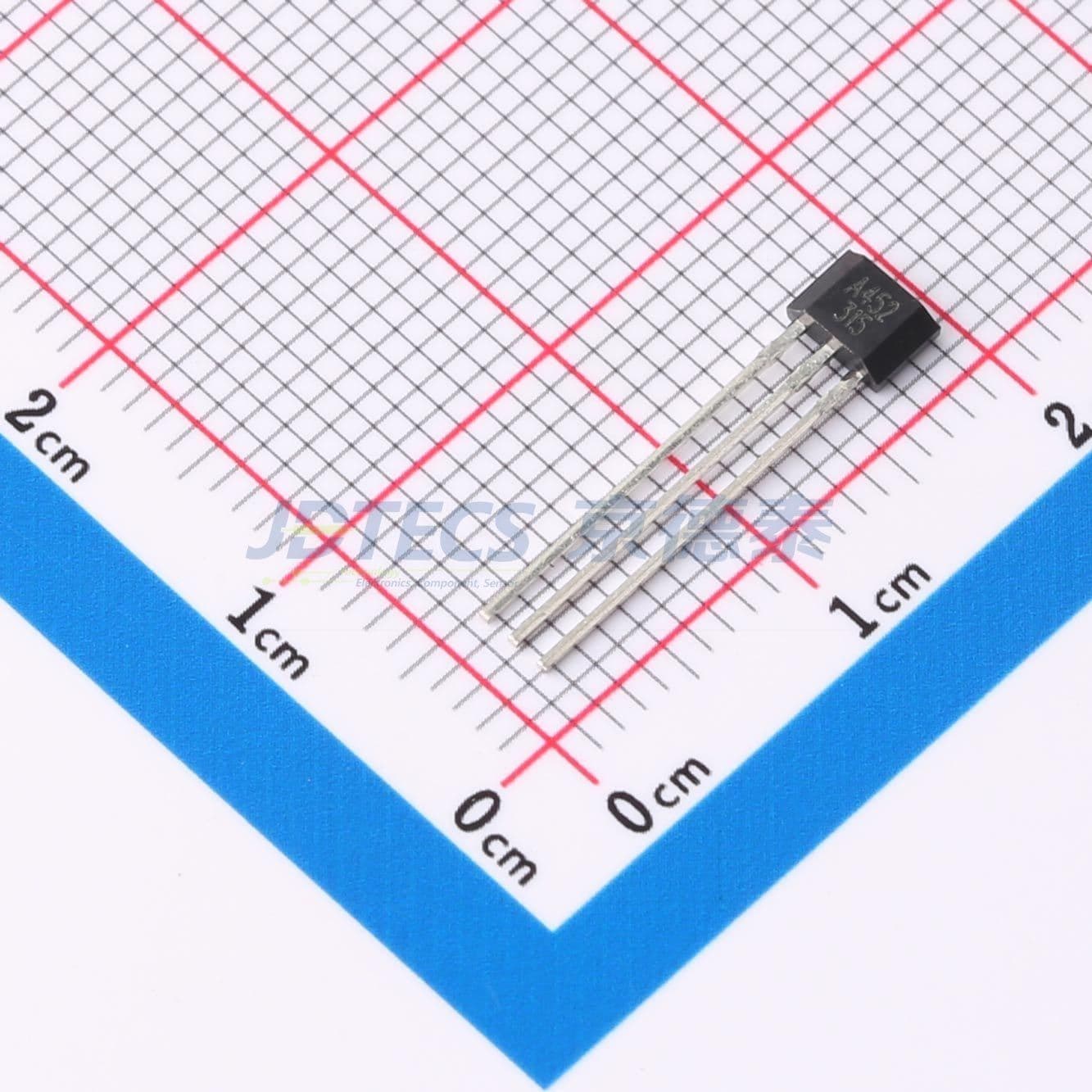

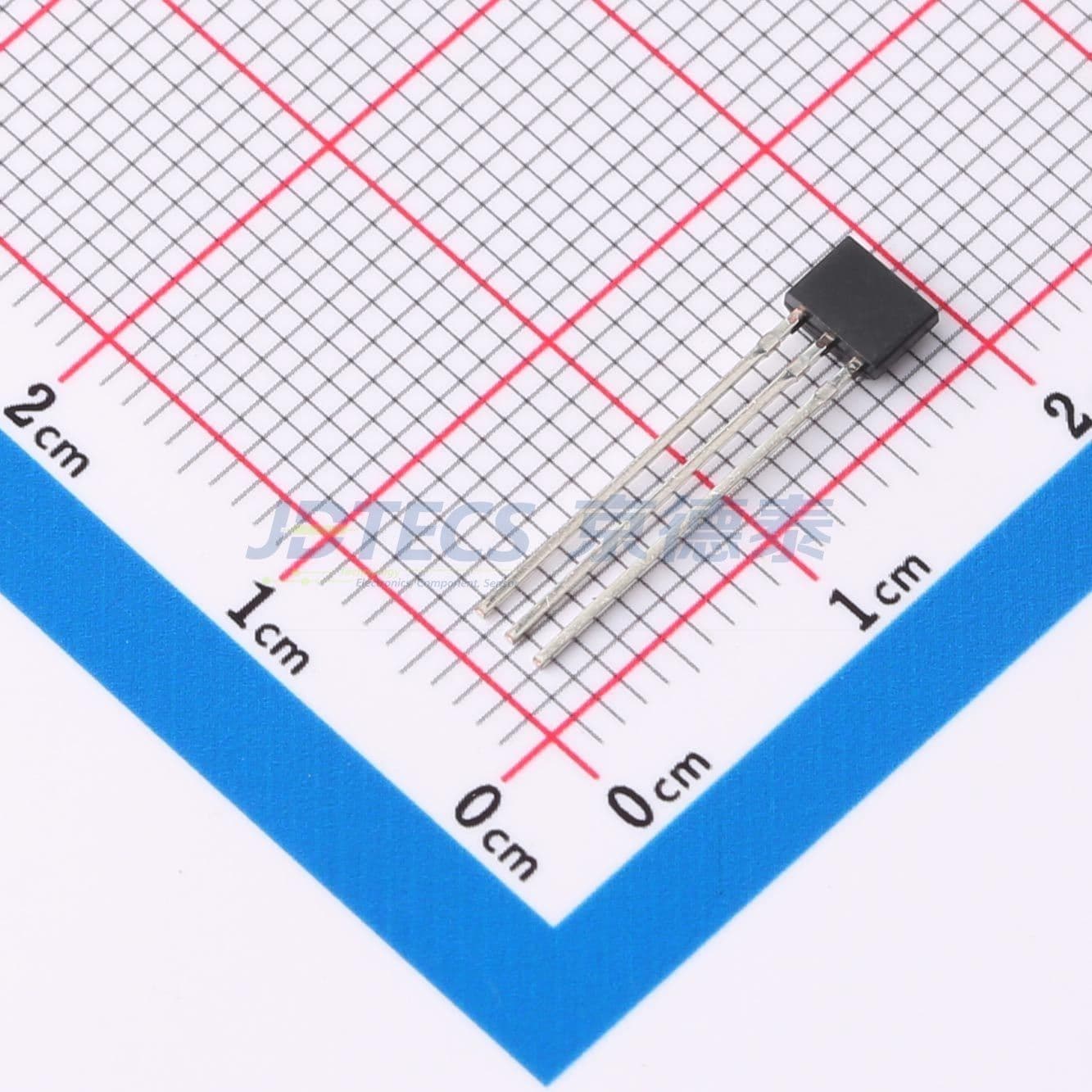

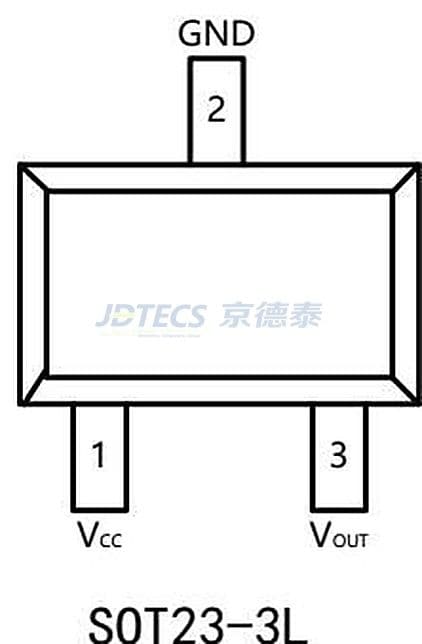

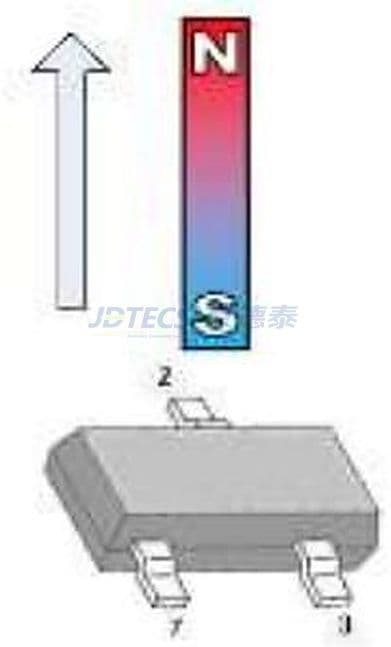

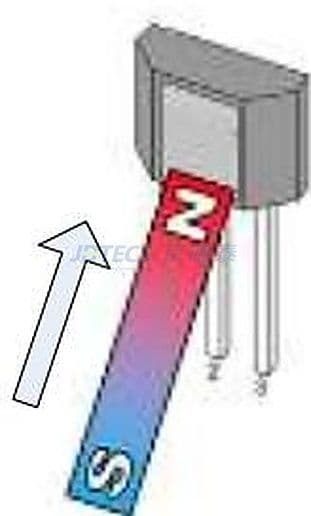

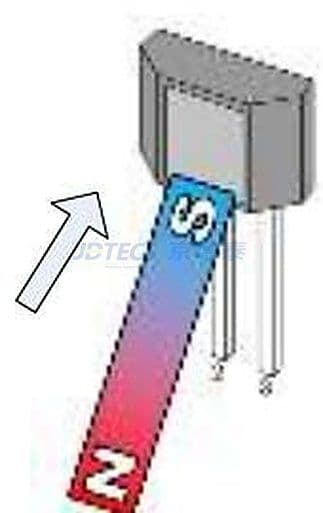

Three-View Images
